Sub Soiler
Sub Soiler

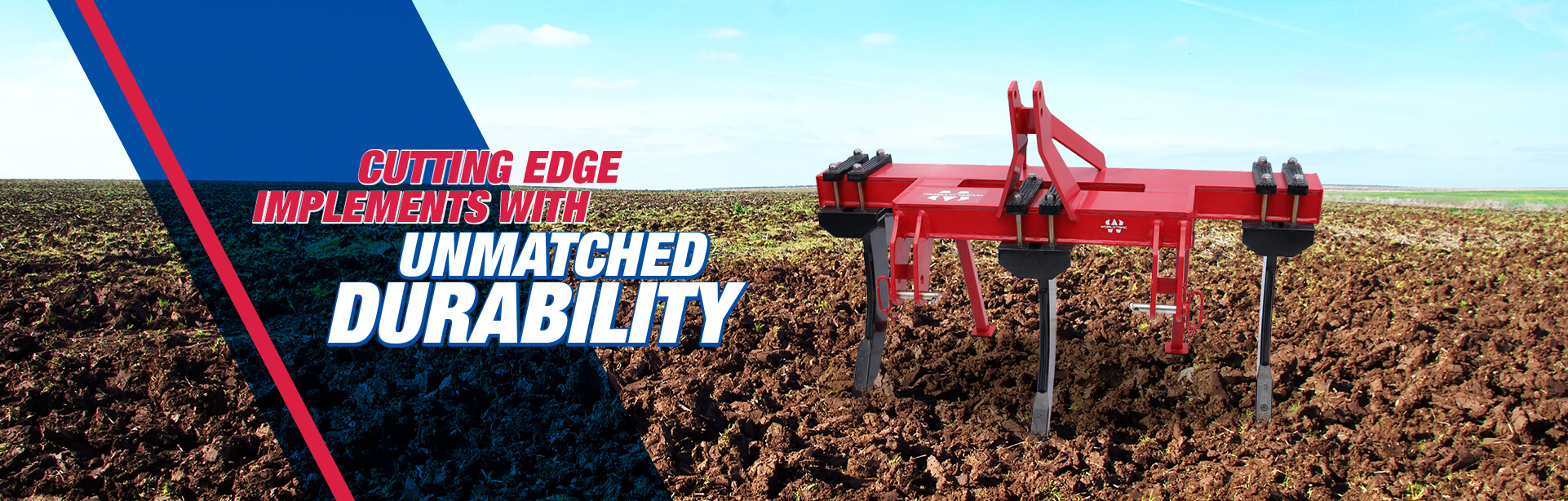

Worldtrac Sub-Soiler is special equipment used to break the compacted soil restricting the movement of water, air & roots which eventually increases the survival rate and even growth of crops/plants.
It increase water, air and plant communication in the soil in the best way. Subsoiler breaks a second layer of soil, it penetrates more than other primary implements.
It works effectively in hard soil and helps to increase efficiency of secondary implements
Technical Specification
| Sub-Soiler | ||||
| Model | WT-SS1 | WT-SS2 | WT-SS3 | WT-SS5 |
| Length (mm / Inch) | 660 /26 | 1065 / 41.9 | 1525 /60 | |
| Width (mm / Inch) | 685 / 27 | 1790 / 70.5 | 3375 / 132.9 | |
| Height (mm / Inch) | 1250 / 49.2 | . 1270 / 50 |
||
| Working Width (mm / Inch) | Single Shank | 750-790 / 29.5-31.1 | 1490-1530 / 58.7-60.2 | 2950-3050 / 116.1-120.1 |
| Working Depth (mm / Inch) | 600 / 23.6 | 800 / 31.5 | ||
| No. of Shanks | 1 | 2 | 3 | 5 |
| Weight (Kg. / lbs Approx.) |
130 / 287 | 295 / 650 | 355 / 783 | 730 / 1609 |
| Tractor Power (HP) |
35-45 | 55-60 | 75-90 | 100+ |
*Data and specifications are subject to change without any advance notice due to continuous product improvement and development.
